Nuts & Bolts

One of the issues about buying a car in pieces is that you inherit a big selection of old nuts, bolts and washers, usually well mixed together and no knowledge where they go, or even if they belong to your car.

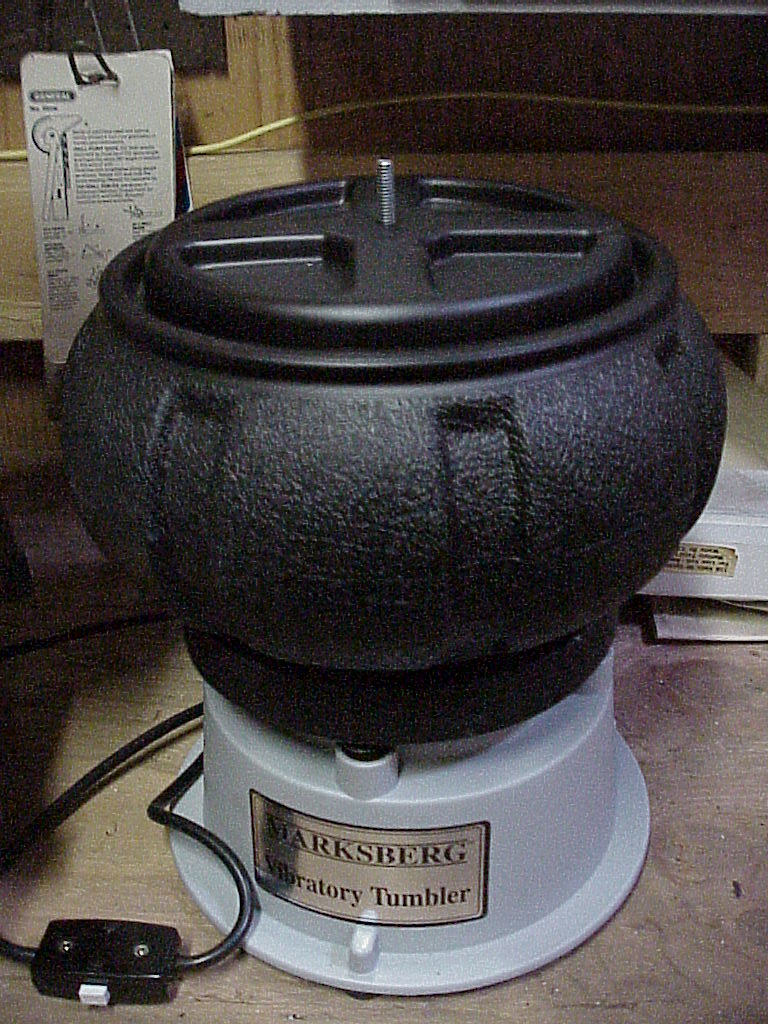

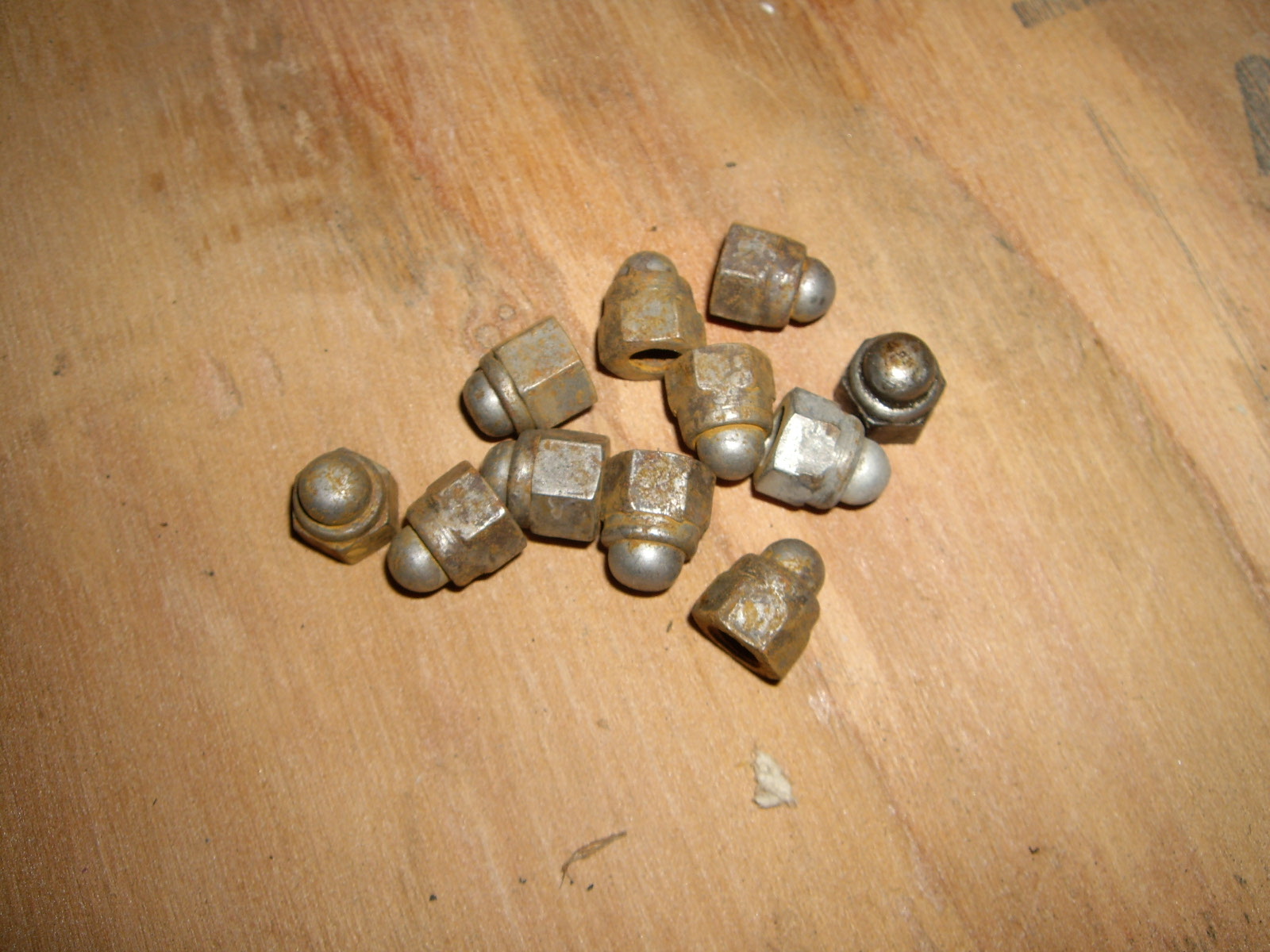

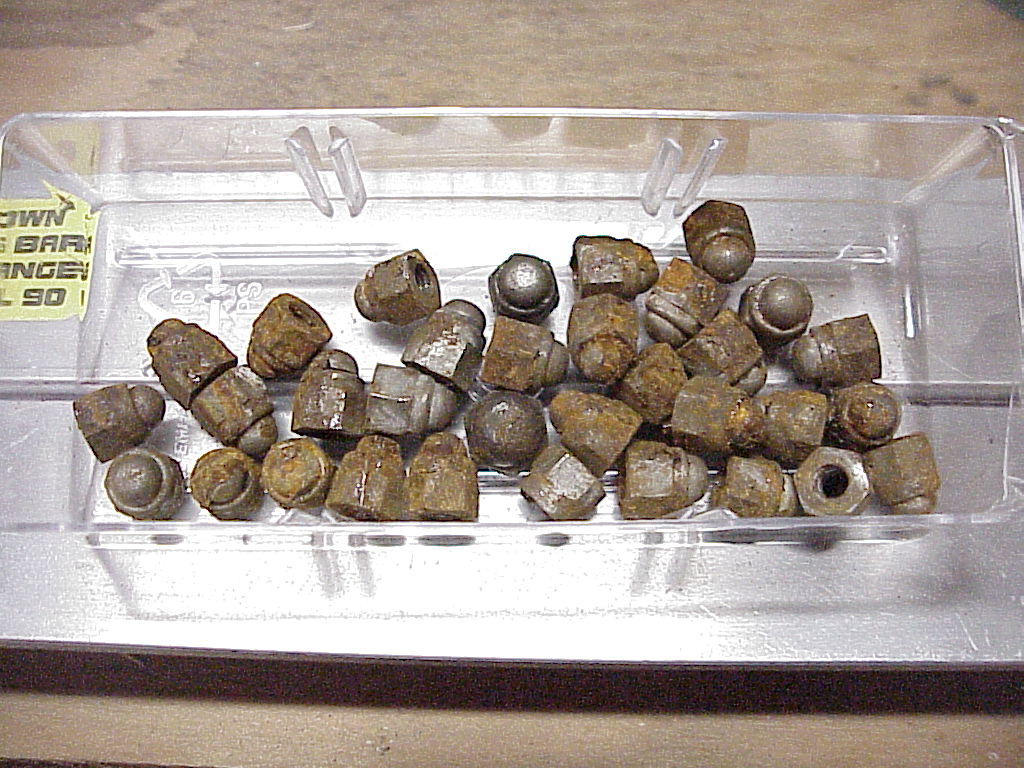

I had done some initial sorting quite a while ago when I ran them through a vibrator to remove a lot of the rust. You can see the before and after pictures.

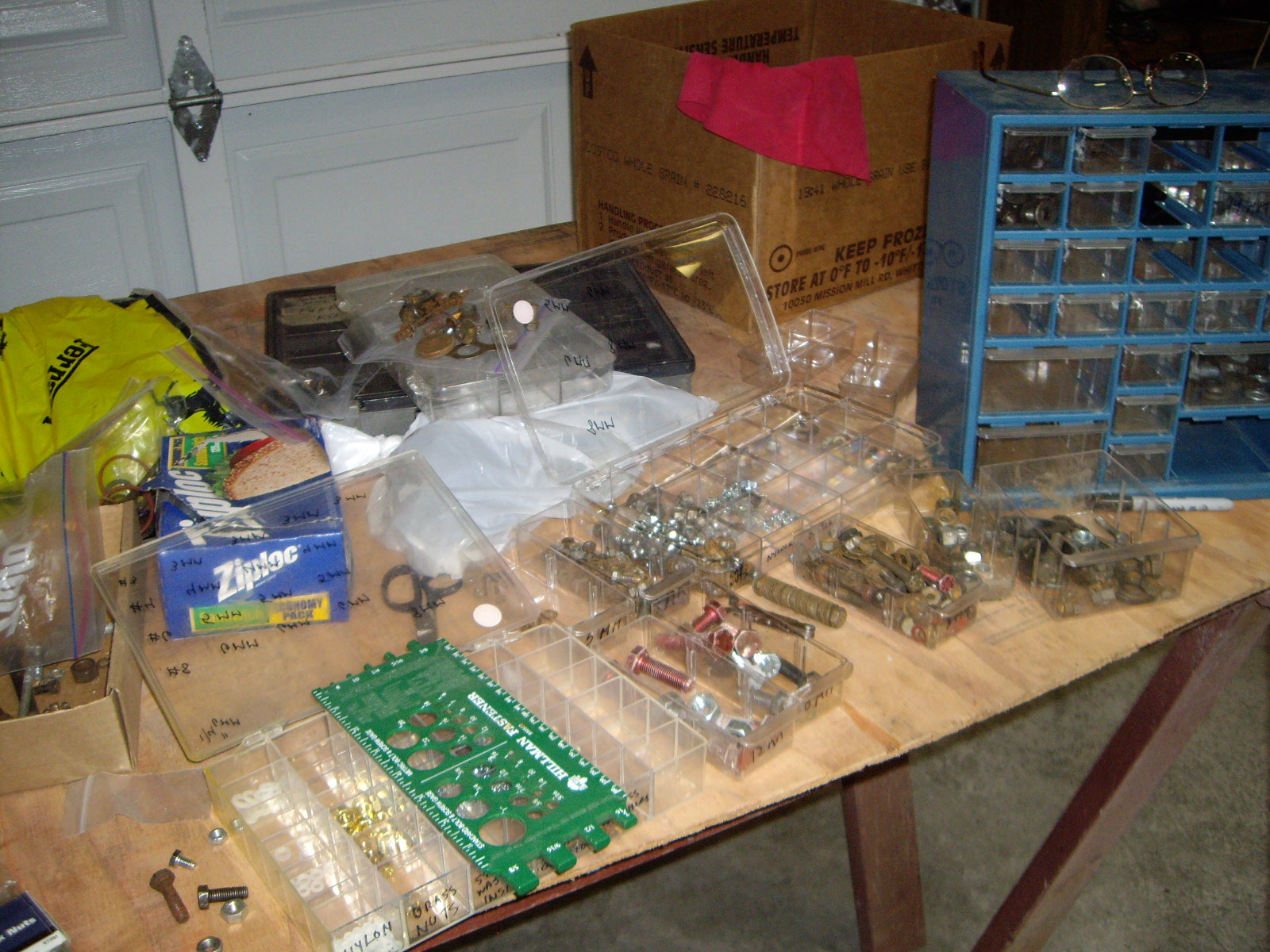

After needing to find the missing pieces to my stalk switches, I decided that I had better go through, sort and categorize all of loose parts, including the nuts and bolts. This isn't a fast task since Ferrari used several thread pitches on some of the bolt sizes. In addition, there were several US sized items included too. I don't know if they just got mixed in, or came off the car after some mechanic used whatever was available for a repair. Here you can see my sorting table.

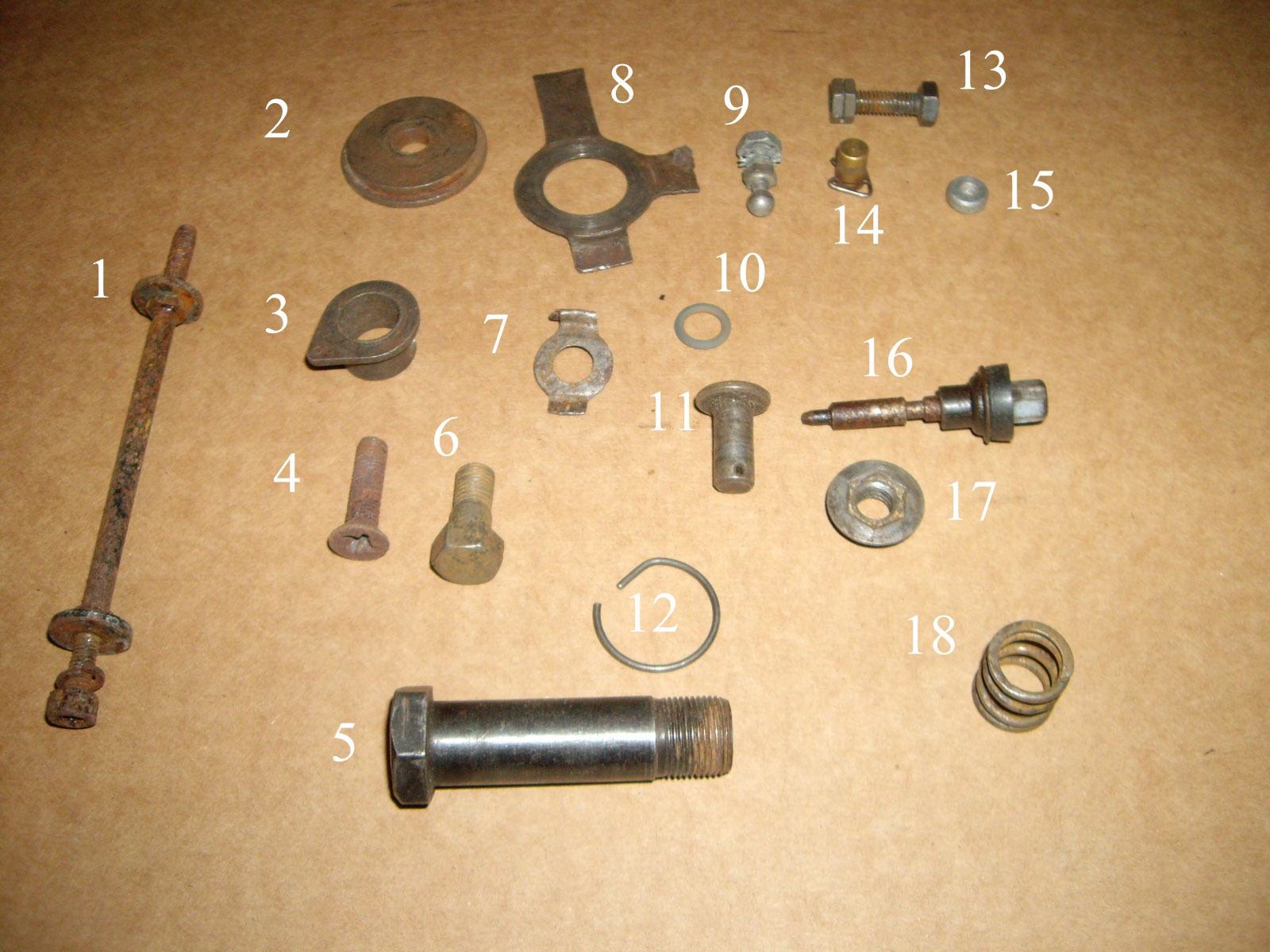

I set aside all of the mystery parts for further investigation. I've numbered them so if anybody knows what they go to, please let me know.

Stand-off for the fuse panel cover?
Large flat washer, thick with one surface larger than the other. 8mm hole x 35mm OD on one side and 30mm on the other.
Bushing with flat pointed cap, hole in pointed tip of cap, 12mm ID.
Philips screw, only one like it, probably not Ferrari as seems to be 1/4"x28 threads/in.
Large bolt with long shoulder, very fine thread, 14mm x1.0mm pitch x 50mm long.
Bolt with shoulder, 8mm x 1.0mm pitch x 16mm long.
Locking tab, round center hole w/o D-shape or index, 8mm hole.
Large locking tab, 18mm hole.
Ball for ball and socket joint, 5mm threads.
Small green O-ring.
Clevis pin, 8mm x 16mm.
Circlip, 23mm OD.
Bolt with a nut that is partially sliced through, possibly to act as a locking nut? 6mm x 20mm.
Brass cap with clip, possibly end or inside of a spark plug terminal?
Small knurled nut, 4mm thread.
2 piece metal pin with rubber seal, some part of the brake system?
Nut with a large washer as part of it, 8mm x 1.25mm thread.
Small spring, 15mm OD x 15mm long.
