A/C Instructions

Recently, a Ferrari blueprint of Air Conditioning instructions turned up on eBay.  A friend who owns a 330 GTC bought it, but then found that the drawing was accurate for a 330 GT rather than a GTC.  So I ended up buying it from him.  It is clearly genuine Ferrari as the paper has Ferrari watermarks on the reverse side.  There are instructions both in Italian and English.  I presume that some owner that had ordered A/C on an early 2HL car before the new dash addendum was available, complained and was sent this.

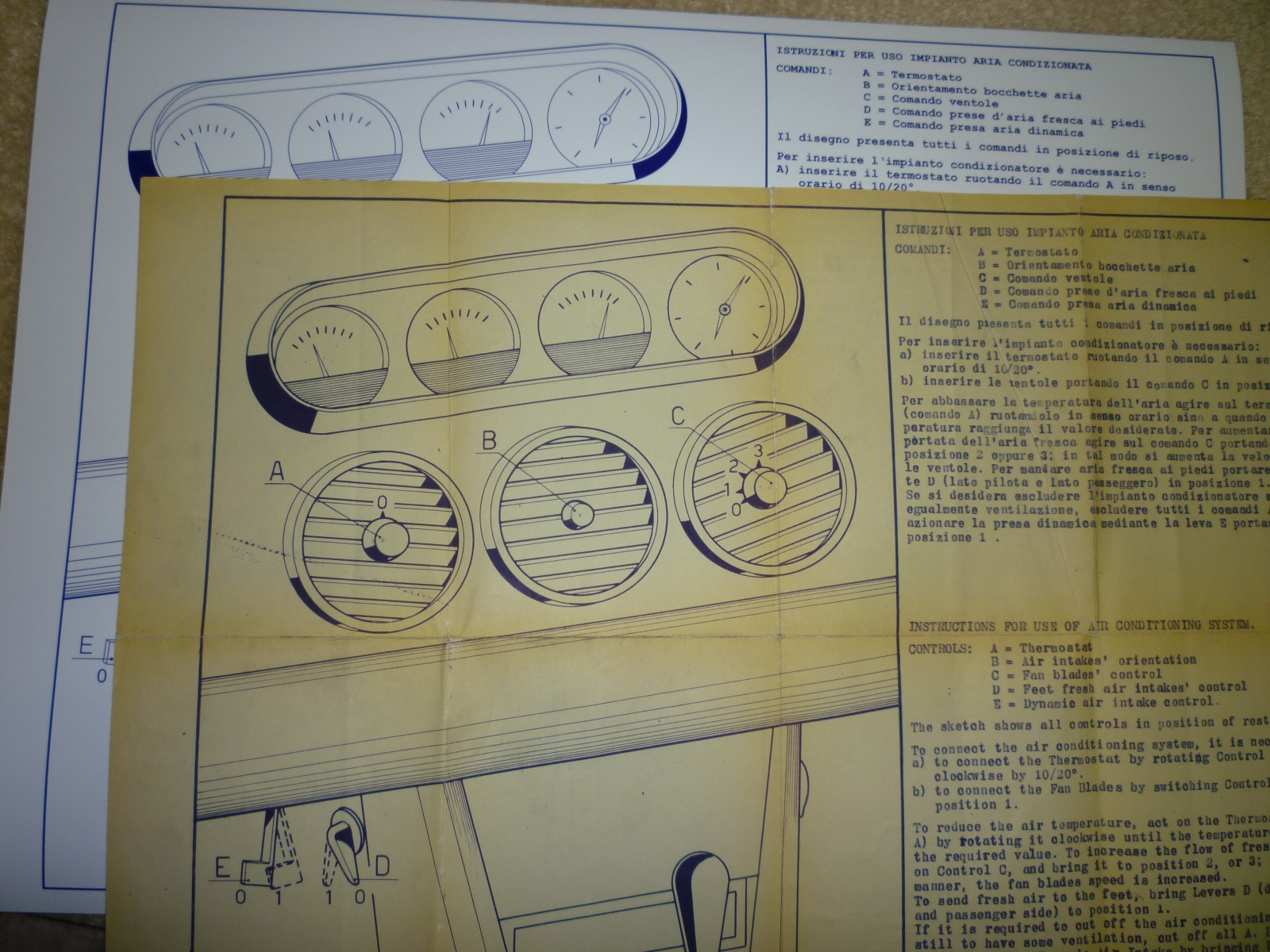

After it arrived, I spent quite a bit of time in a CAD program reproducing the drawing.  Once I had that done, I had a full sized copy reprinted.  You can see the original in the foreground with the reprint in behind.

This way, I can have the reprint in my owner's pouch and not worry about the fragility of the original.  If anybody would like a copy, I can have one printed and delivered (in the US) for $25.  You would have to cut it down to the right size but there are cut marks printed to help.  Use the contact page for ordering.  The original was folded in eights, but fourths makes it just about the same size as the other manuals and fit into the owner's pouch.
