Kerry's 250 GT Pininfarina Coupe Restoration (1643GT)

Missing Parts

This page is my ongoing list of parts that I will need to complete the PF coupe.  If anybody knows of a source, please contact me.  Note, all of these thumbnails can be clicked for a much larger picture.  The ones at the top are those still missing.  The rest were obtained from the source noted.



Description

Part Number

QTY

Source

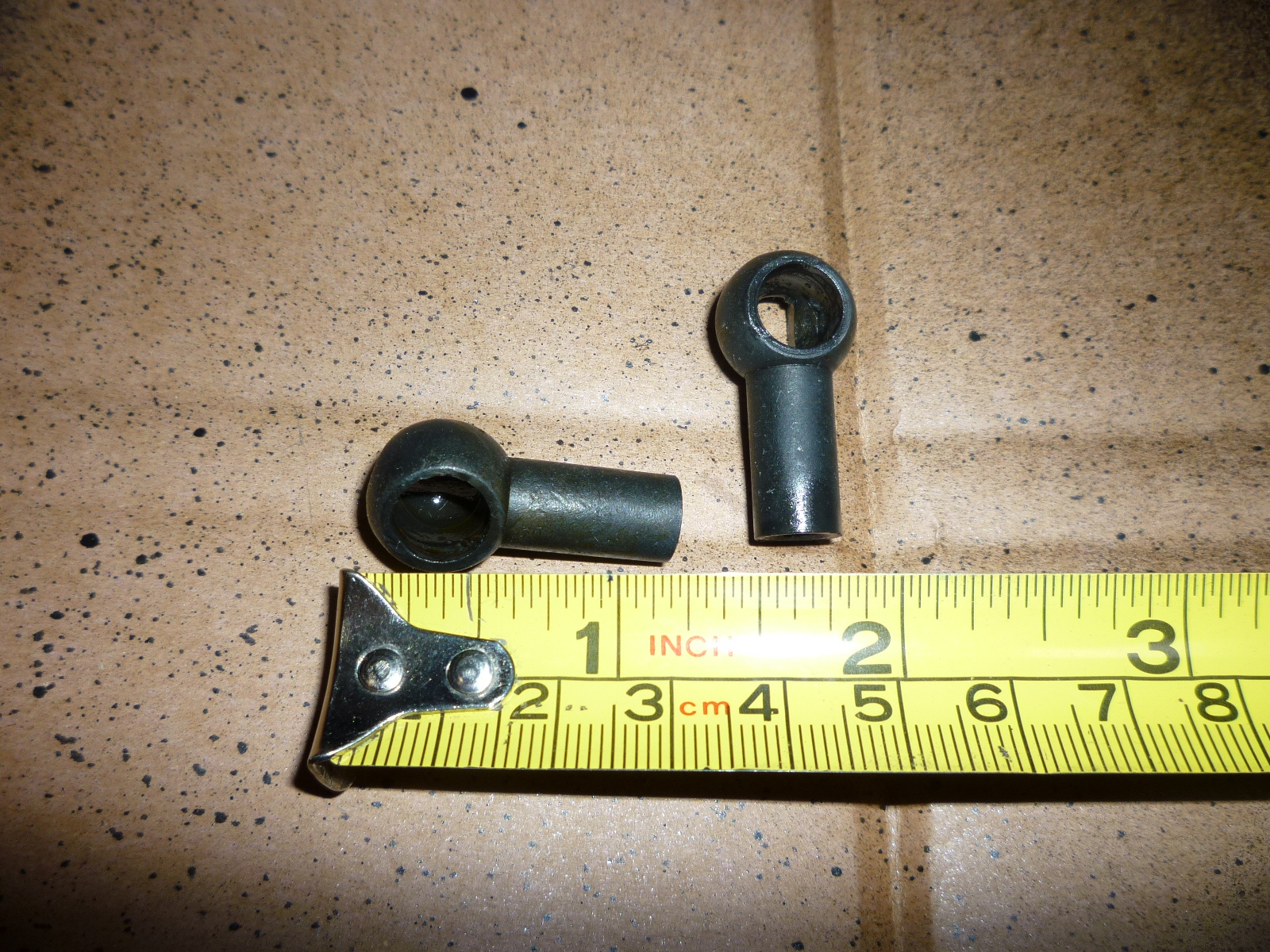

Linkage 9mm ball 93102 2 Made
Used MB 8mm
Linkage 9mm socket 93103 2 Made
Used MB 8mm

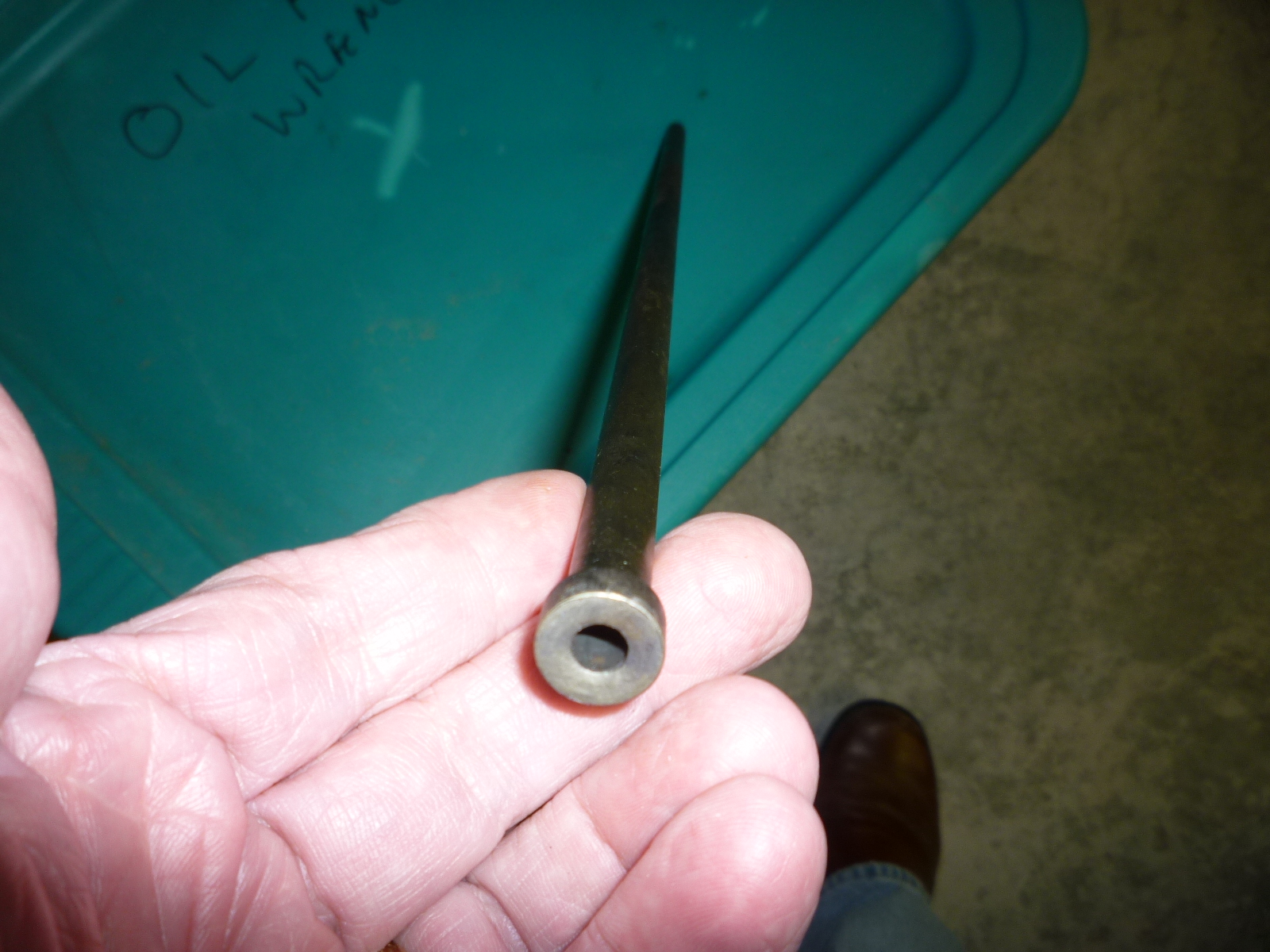

Water pipe 8mm acorn nut   1 Newco Products

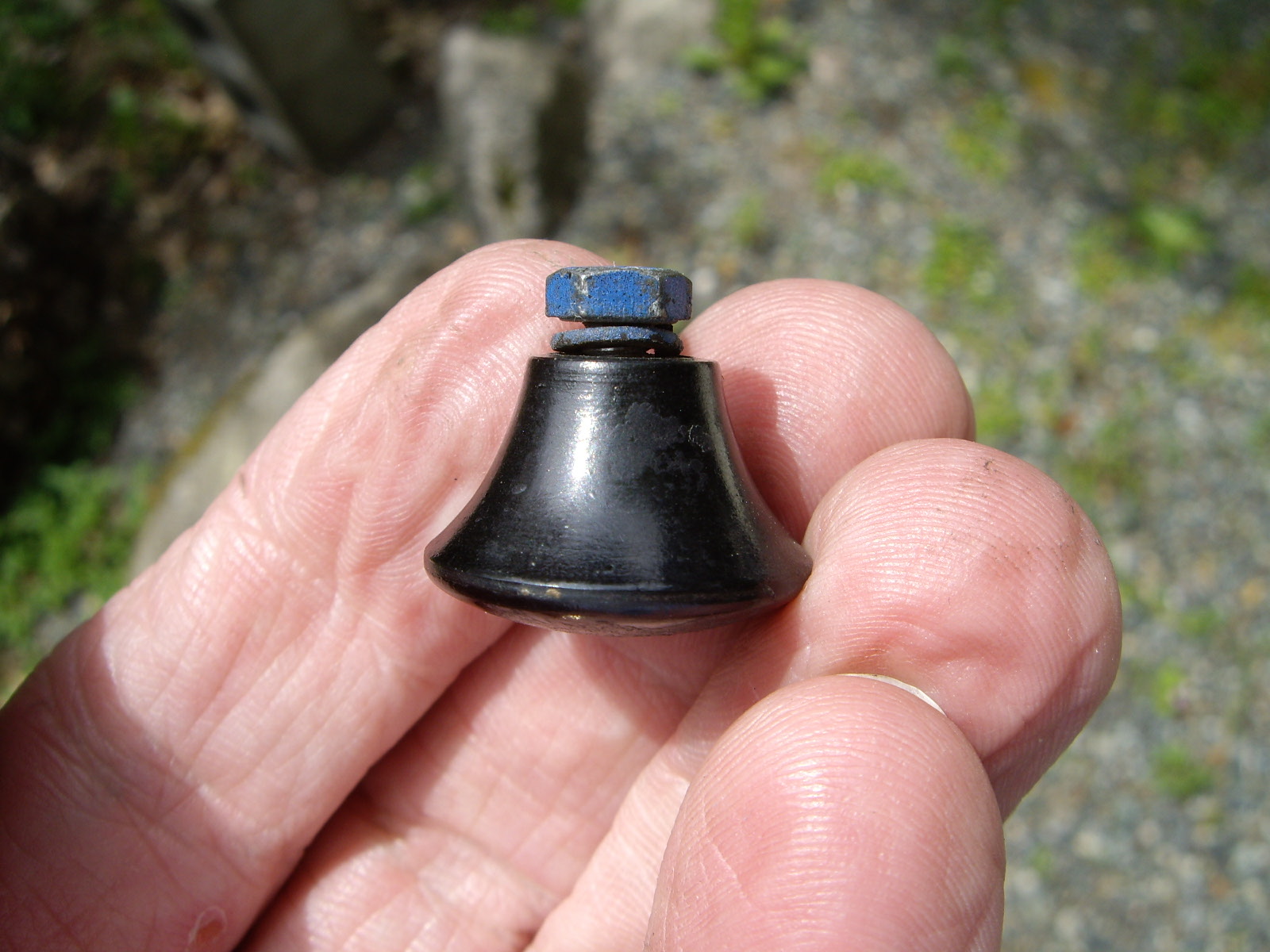

Heater flap knob   1 MAD Enterprises

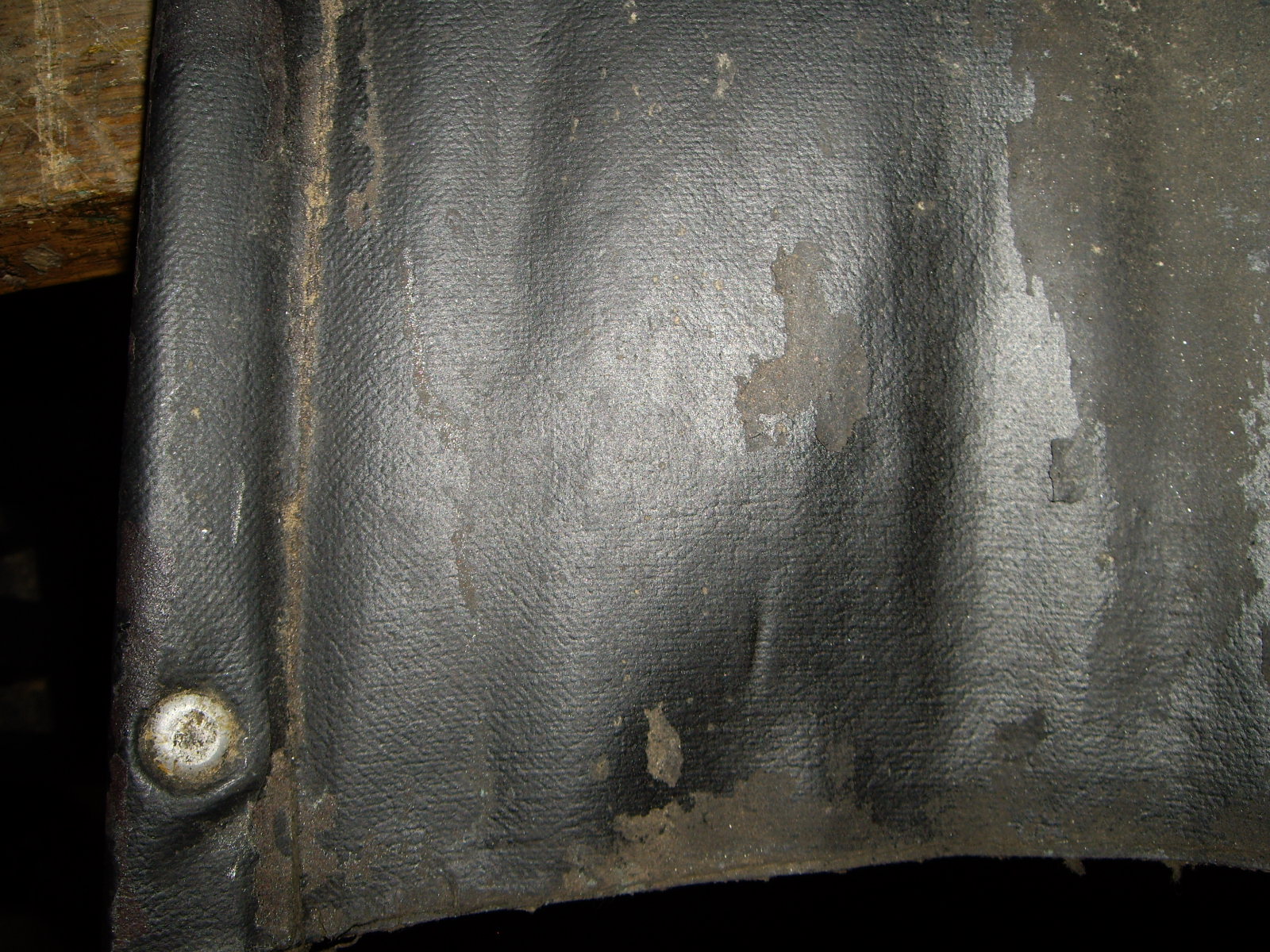

Pedal firewall rubber

67232

2 Re-Originals

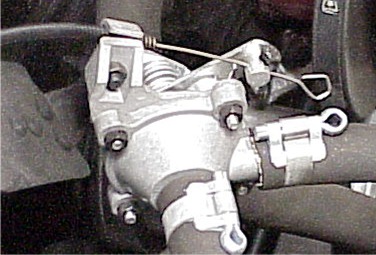

Heater valve   1 Lyle Tanner or
Ricambi America

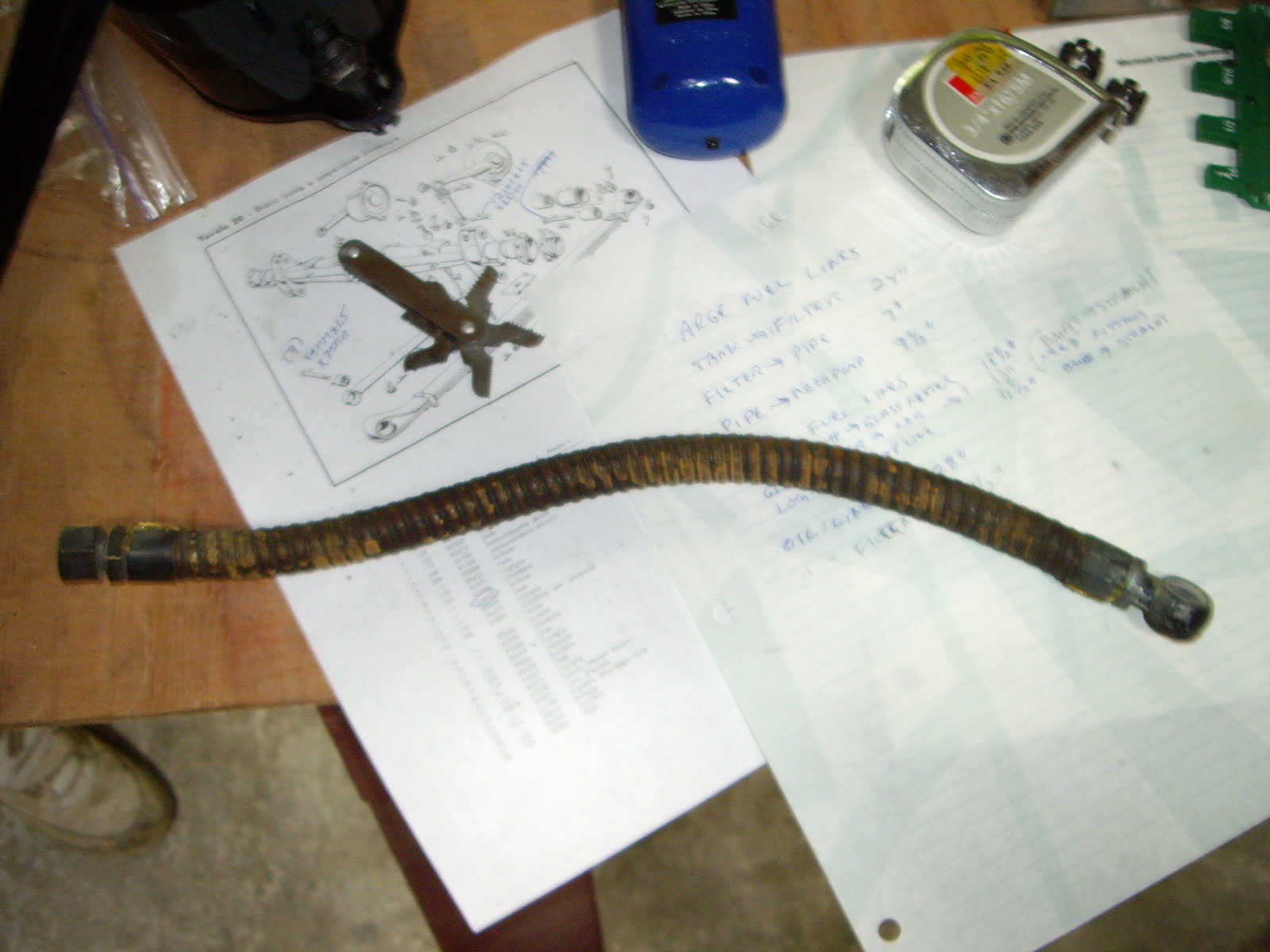

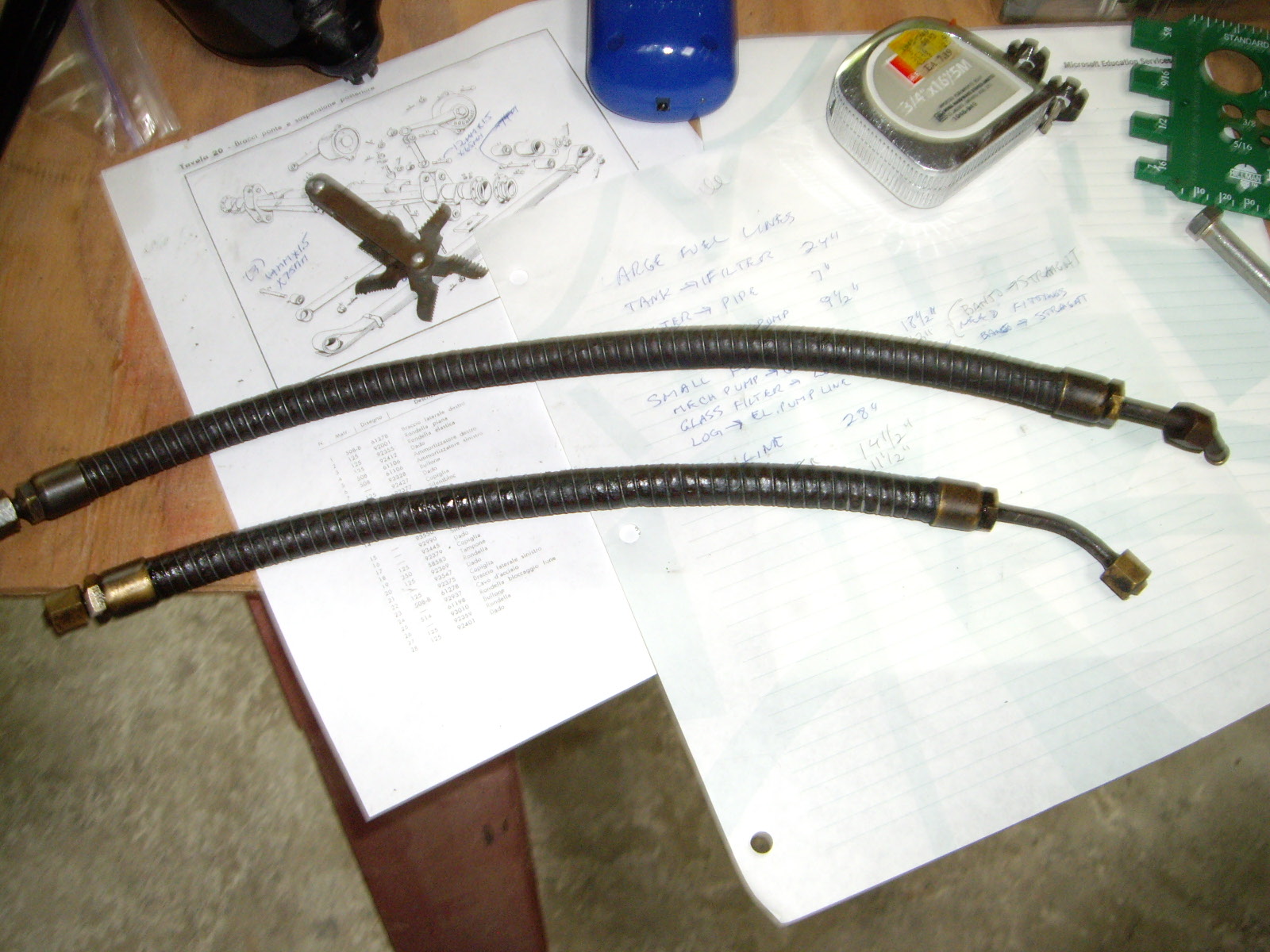

Remote filter oil lines   2 Tom Shaughnessy
Fuel line to log   1 Tom Shaughnessy

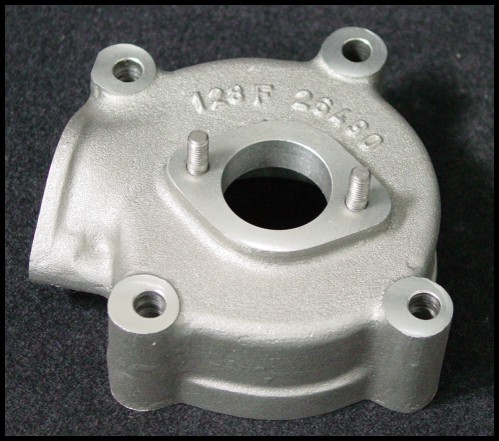

Water pump housing 26490 1 Roelof Parts

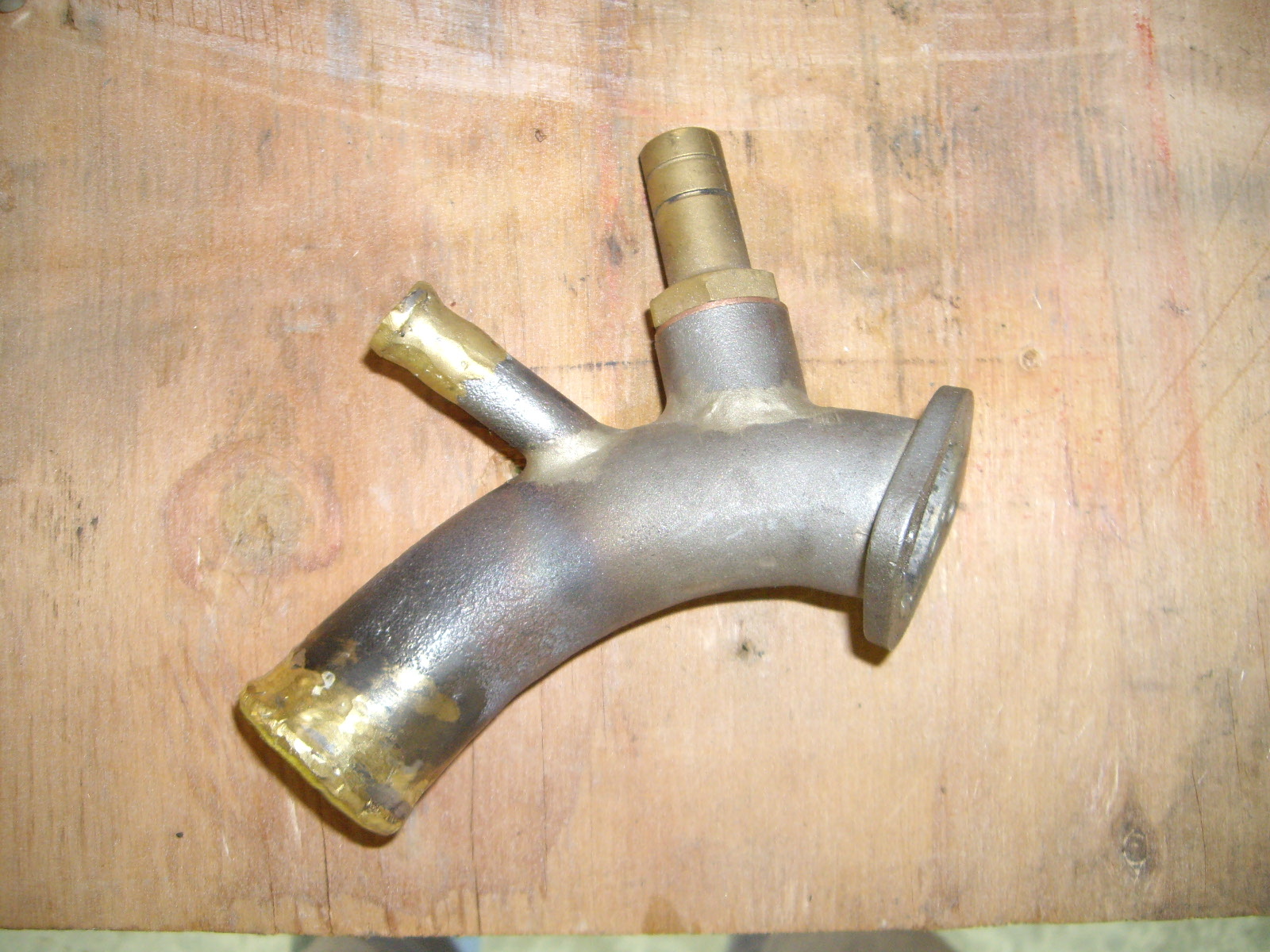

Water pump outlet   1 Made locally
by Marine shop

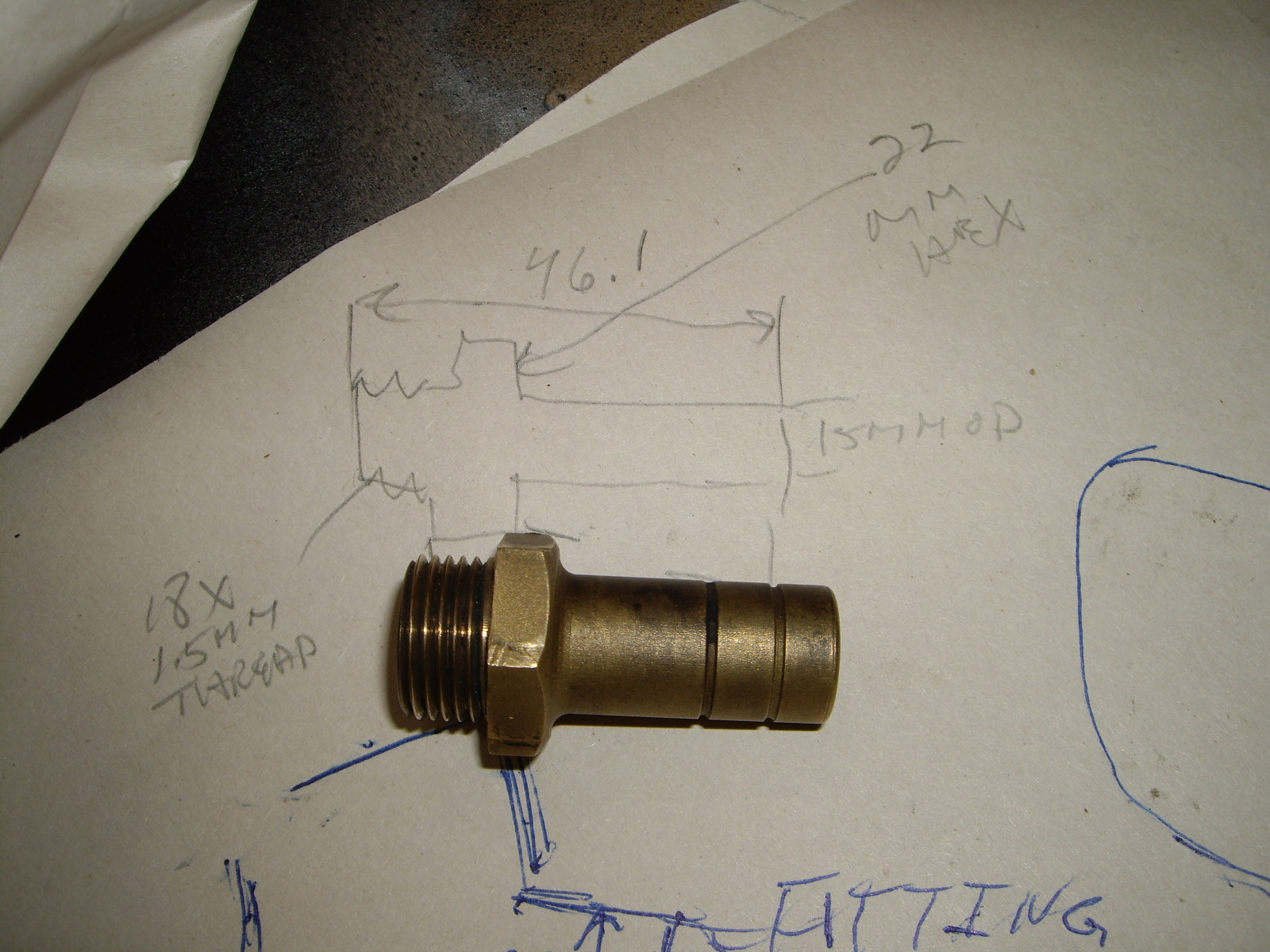

Water pump outlet nipple   1 Greg Jones
Radiator blind fabric   1 Re-Originals
U20151/R
Valve covers 17019 2 Tom Shaughnessy

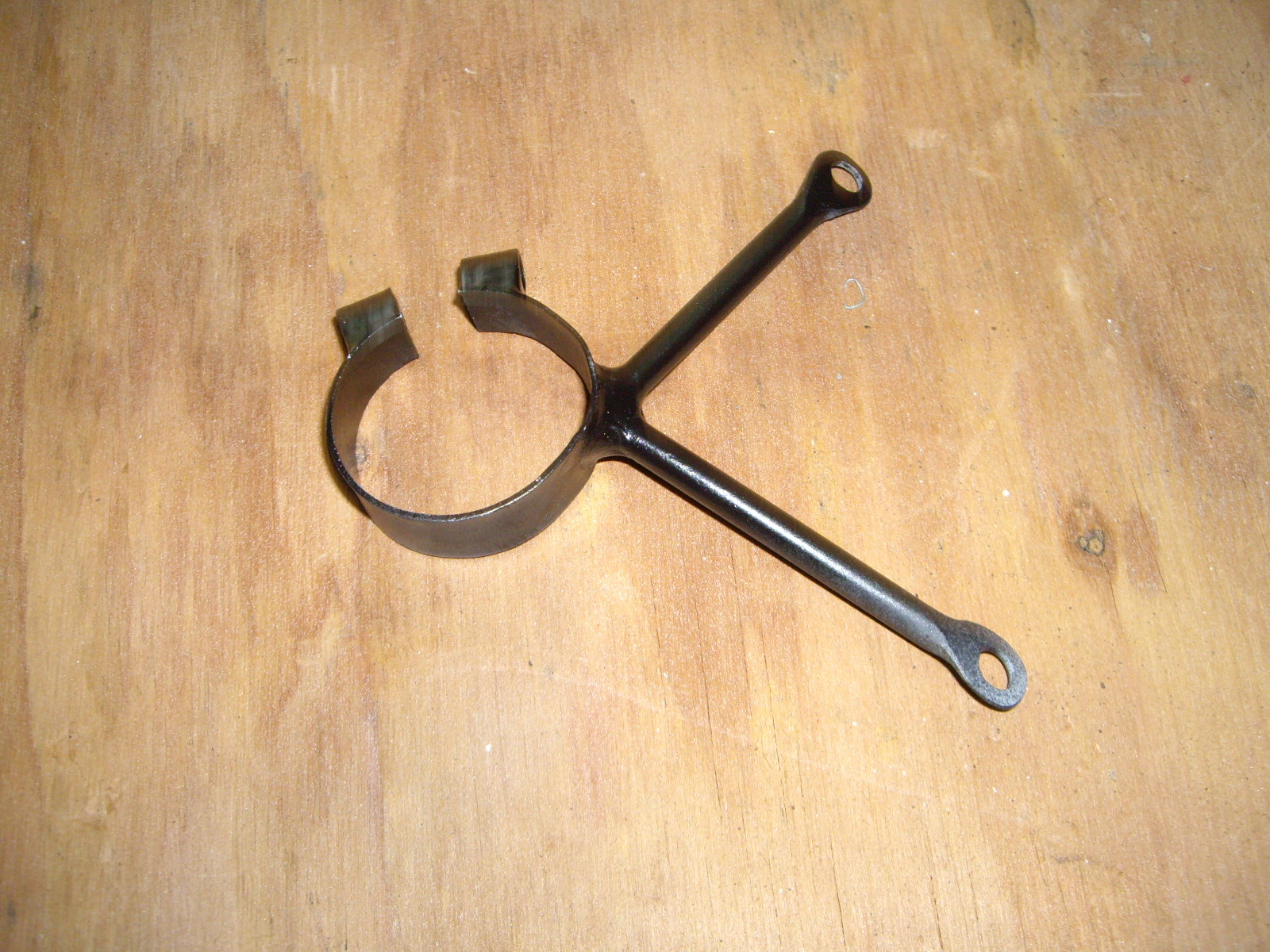

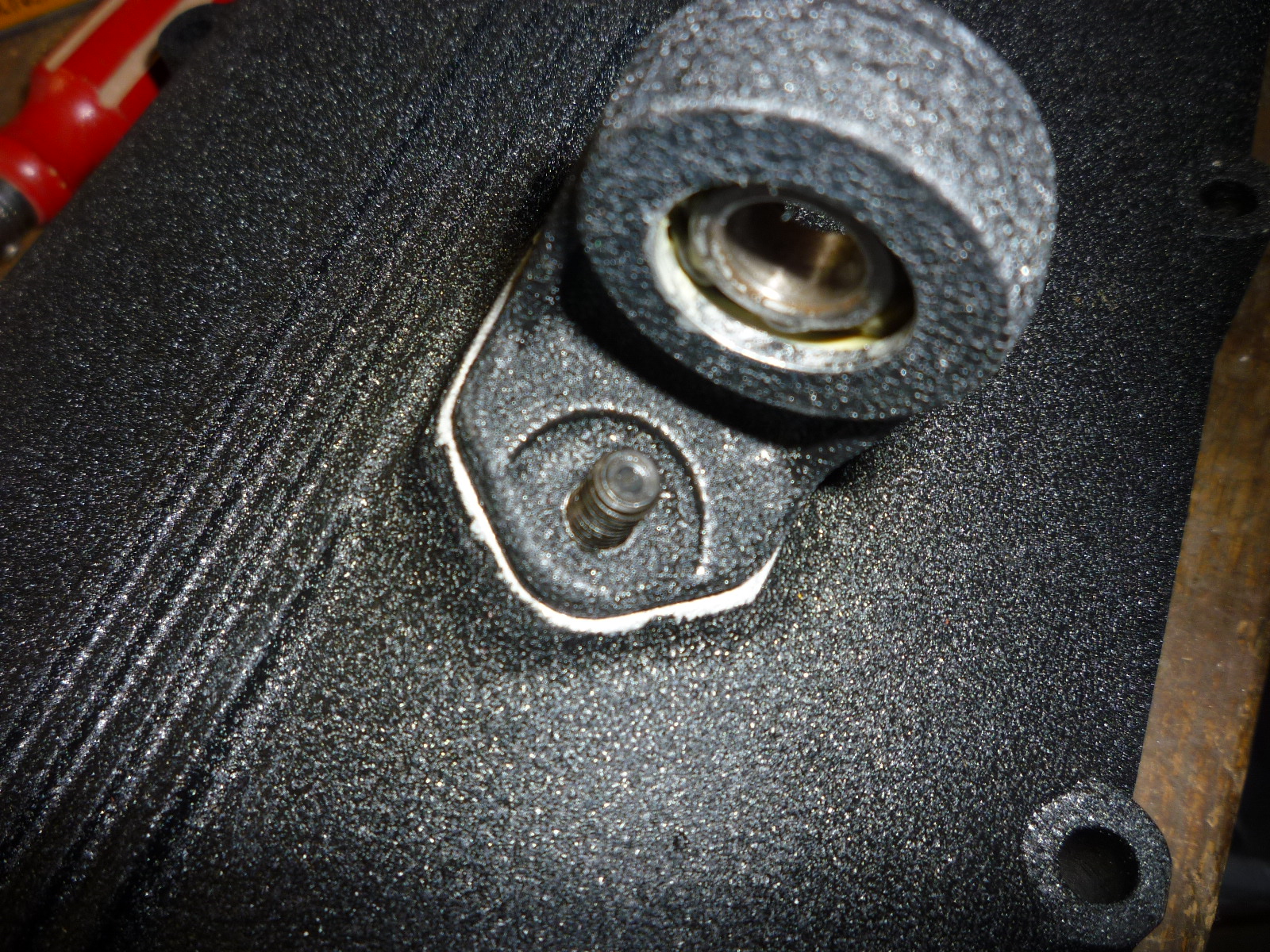

Oil breather bracket Have 1, need 1 1 Tom Shaughnessy

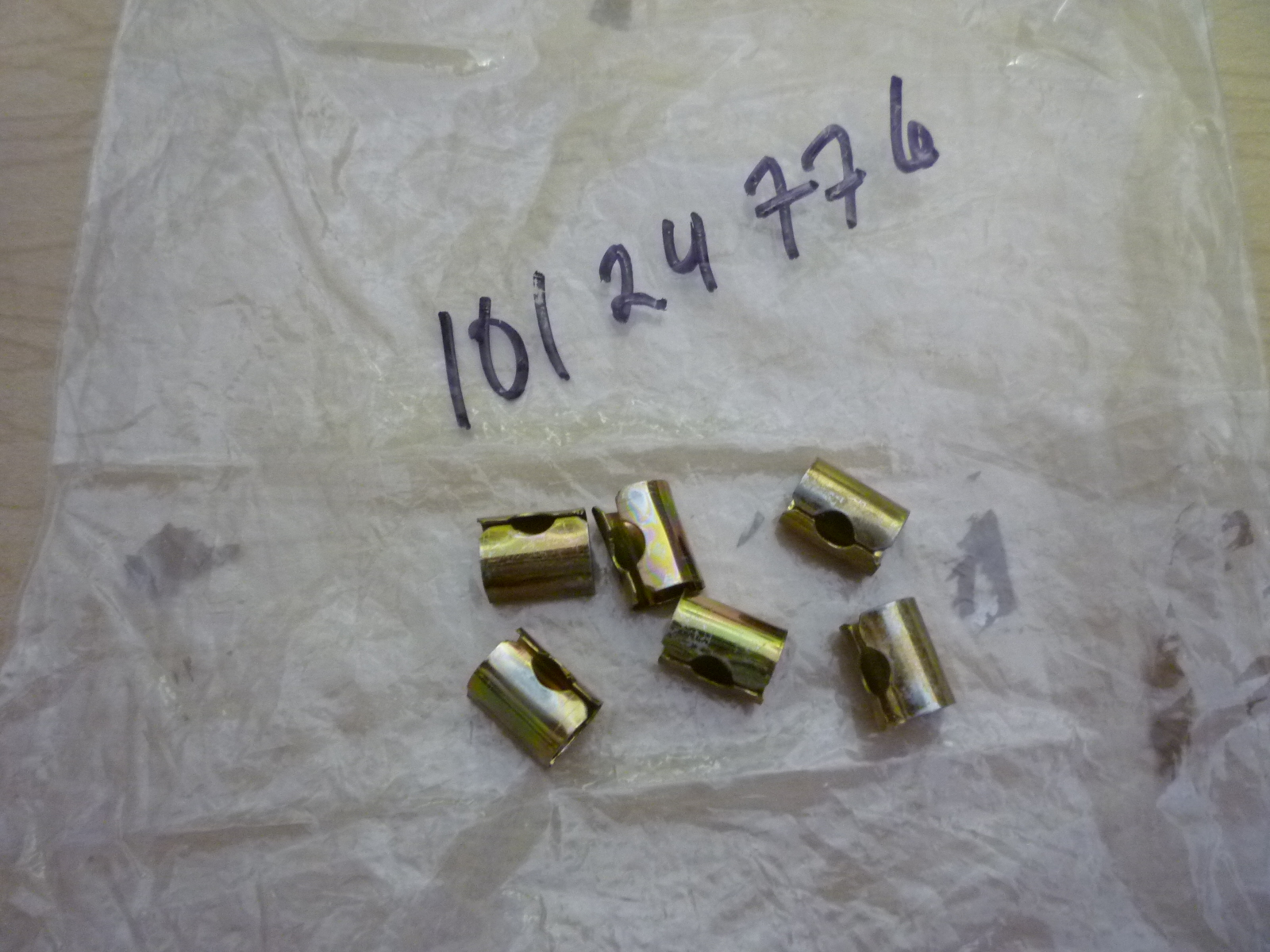

Carb linkage clips 94321 6 McCann
  Carb linkage sockets 94320 2 McCann

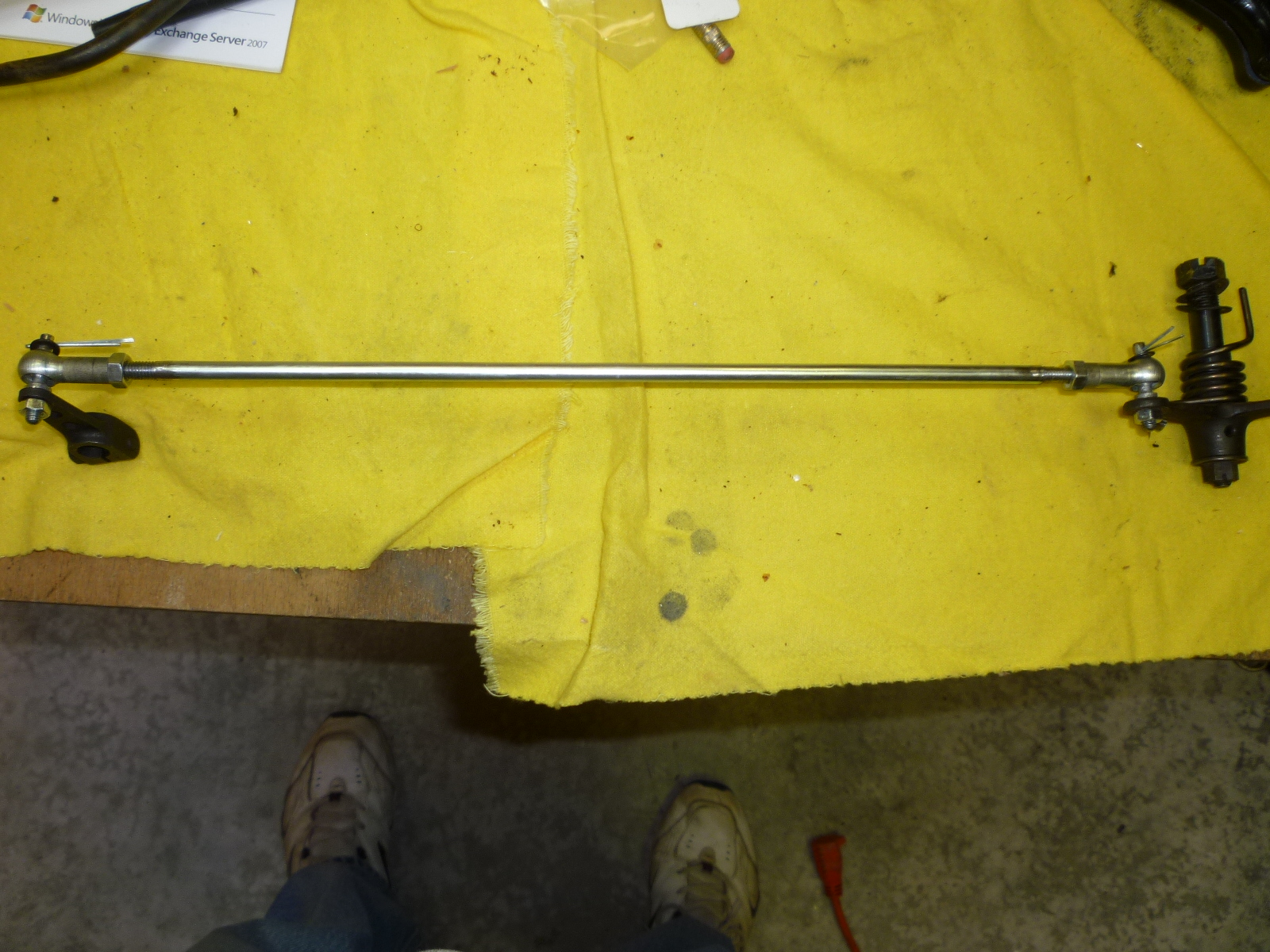

Carb linkage rod 93773 1 Made
Throttle linkage rod 18605 1 Made

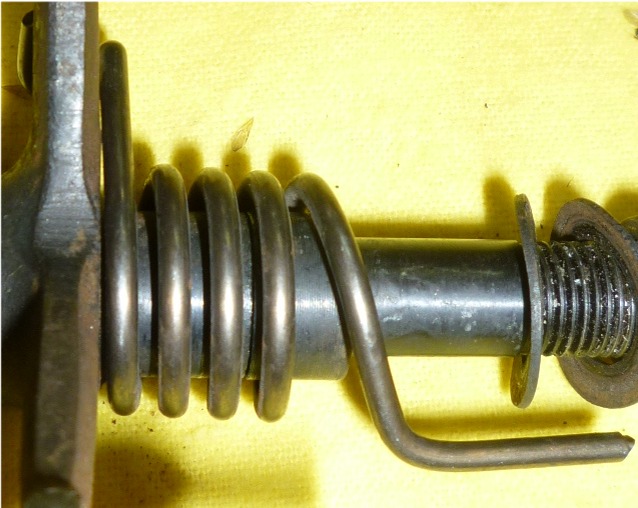

Throttle linkage spring 18481 1 McCann

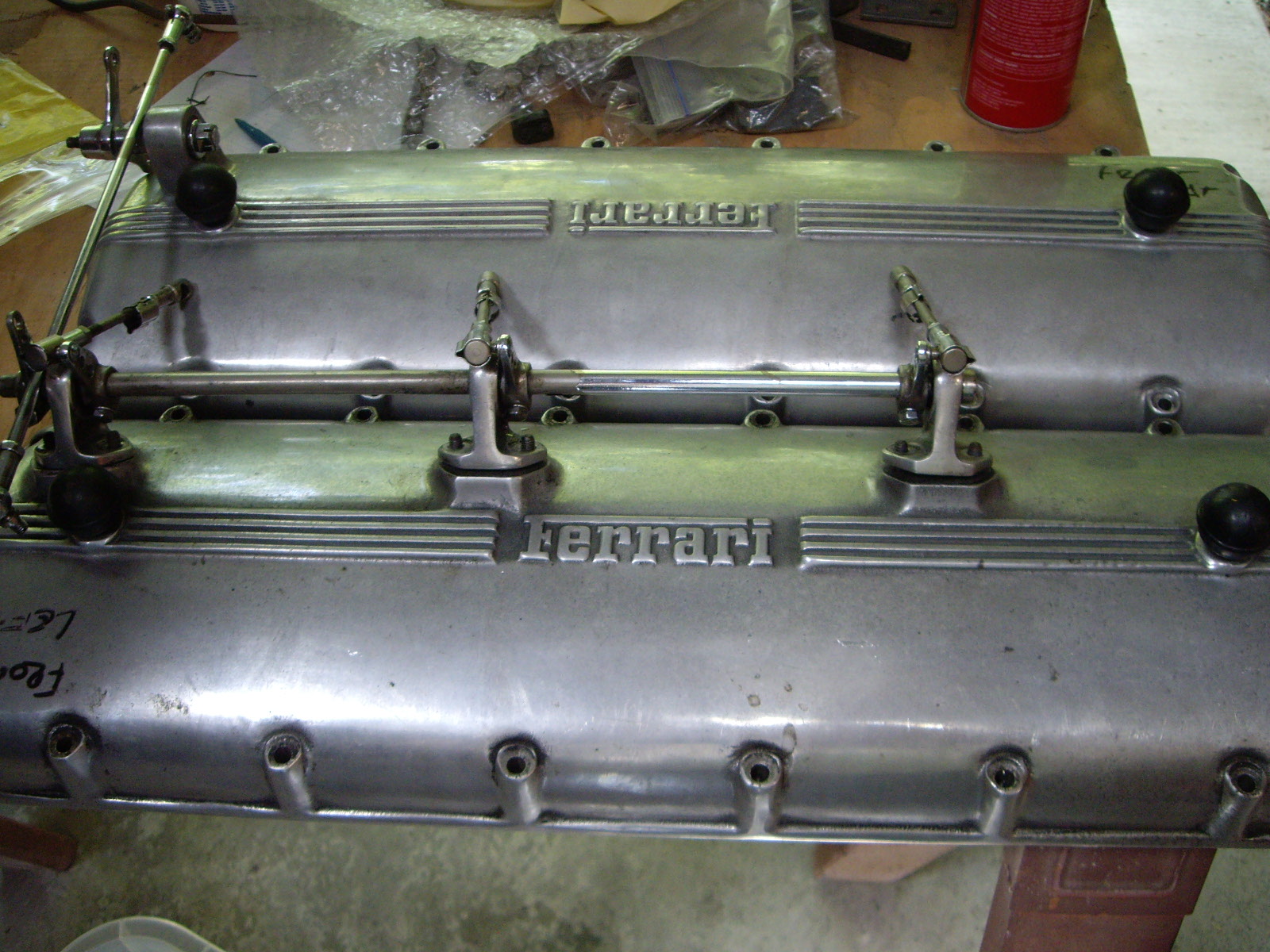

Throttle shaft supports 18539 3 Tom Shaughnessy
Throttle shaft 18605 1 Tom Shaughnessy

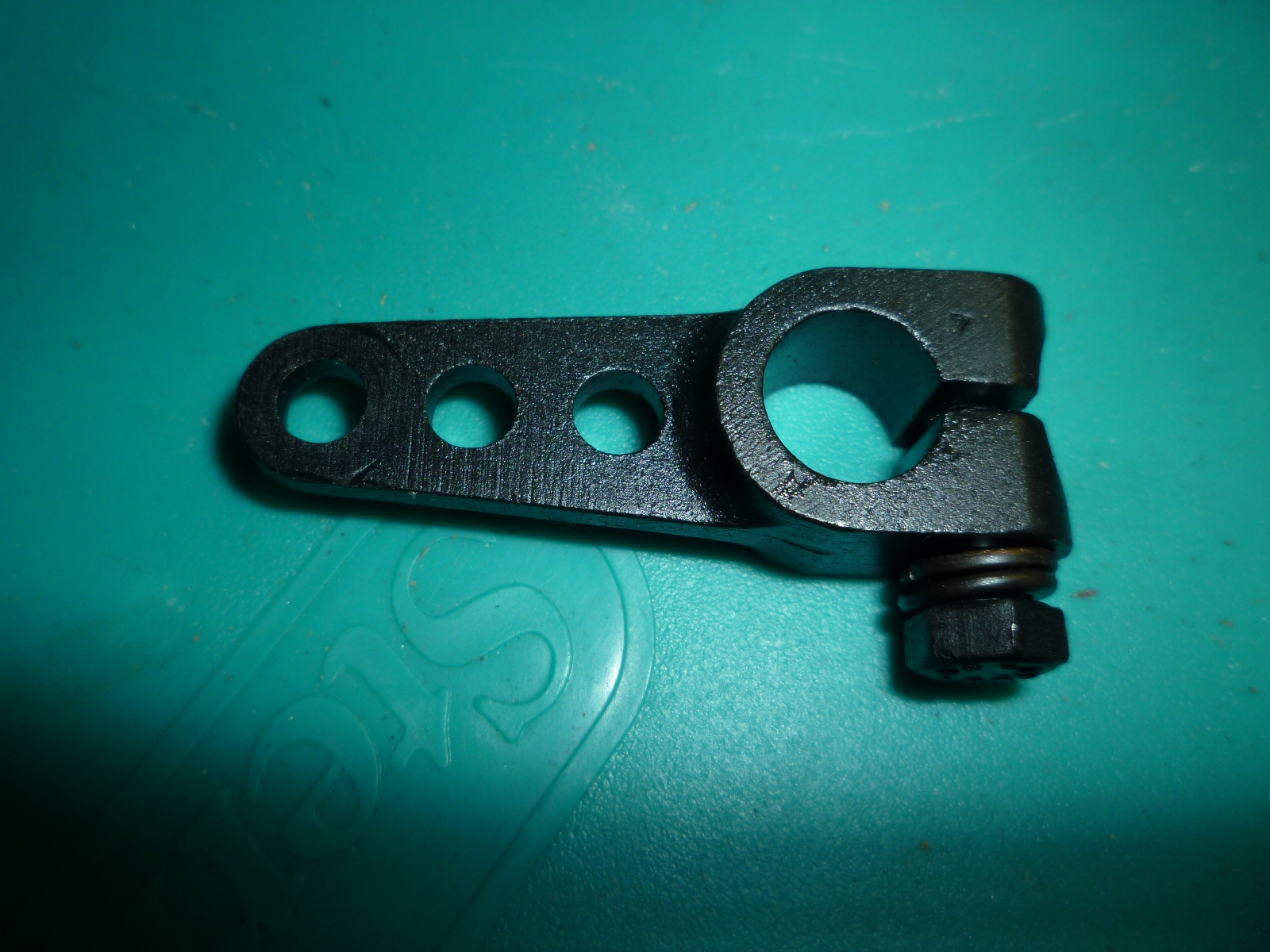

Throttle shaft carb levers 18416 2 2 from Tom Shaughnessy
1 from McCann

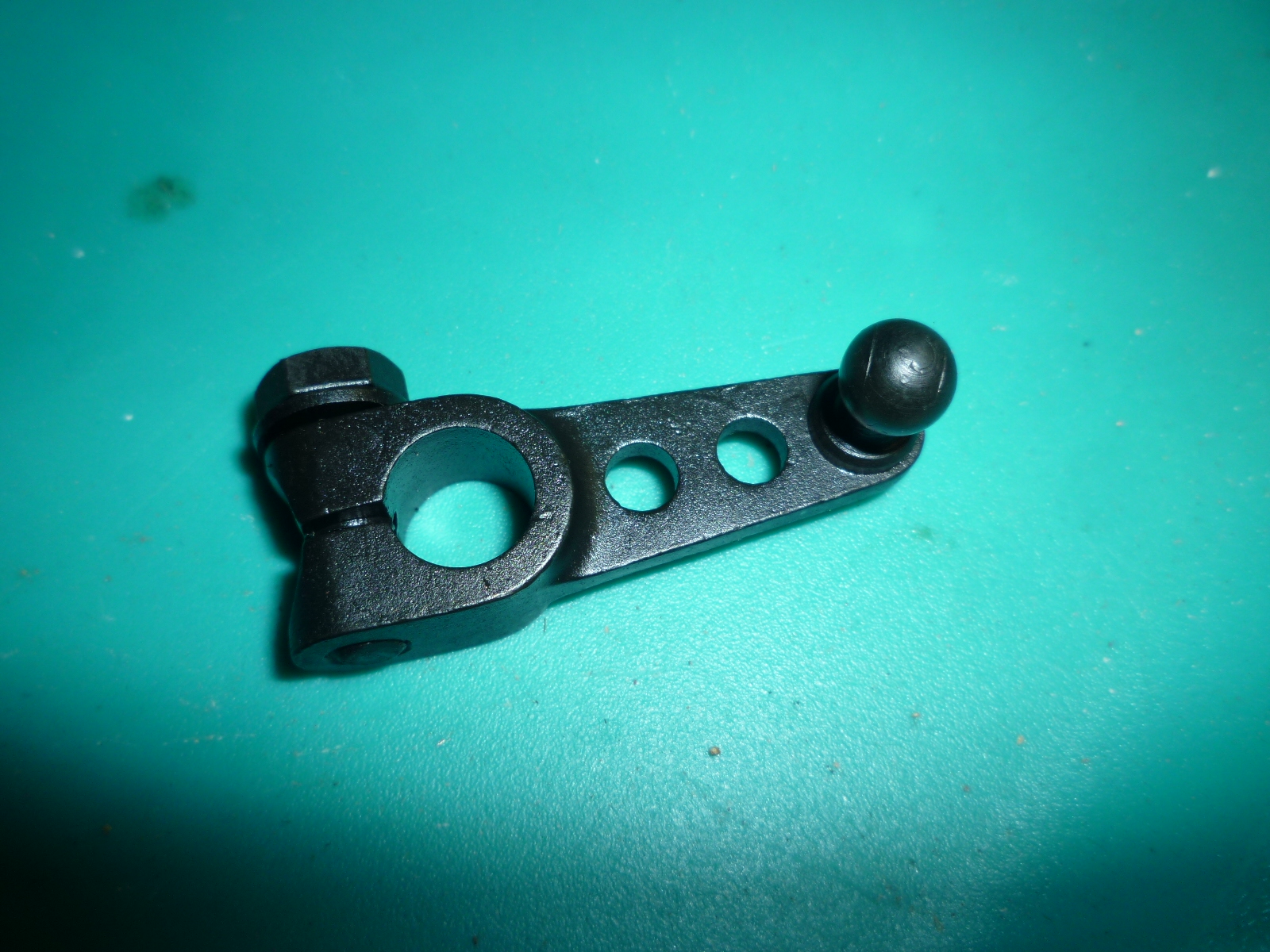

Throttle shaft linkage lever 18150 1 McCann (used 18416)



I'm sure that I will find more missing, so I'll keep this list up to date as I find items and add new ones.
